Seamless Pipe for Offshore Structure

Offshore Project

Offshore Structural Pipe

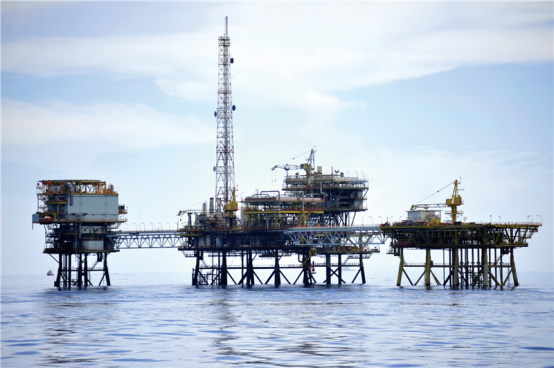

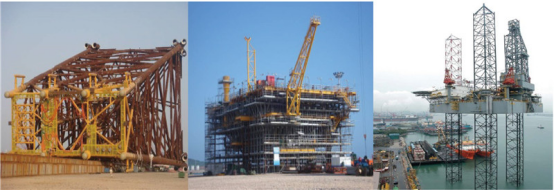

Offshore platform is the equipment to drill and extract oil from the sea. Based on different functions, offshore platform can be classified as drilling platform, production platform, service platform, oil storage, etc. There are bottom-supported, gravity, jack-up, semi-submersible, tension leg type, etc. According to different function, Pile foundation type, bottom-supported and gravity platform are used in shallow waters. Jack-up, semi-submersible, tension leg type, such as vertical cylinder type of offshore platform become the hotspot in the field of ocean engineering.

We  has developed the offshore structural pipes for offshore platform, supplied in normalized or quenched and tempered condition for yield strength 355~690 MPa.
  -  Bracing pipe
  -  Chord pipe
Jack-up drilling platform leg chord pipe is manufactured as with semicircle.
Its advantage is low cost and high efficiency that producing semicircle pipe with seamless pipe through longitudinal cutting process

Characteristics of products
- Steel design with low carbon and micro alloyed
- Low carbon equivalent
- Excellent weldability
- Excellent low temperature toughness
- Lower ductile brittle transition
- Higher surface quality

Reference Standards
API SPEC 5L Specification for Line Pipe
EN 10210-1   Hot finished structural hollow sections of non-alloy and fine grain steels - Part 1:
                        Technical delivery conditions.
EN 10210-2   Hot finished structural hollow sections of non-alloy and fine grain steels - Part 2:
                        Tolerances, dimensions and sectional properties.
EN 10225       Weldable structural steels for fixed offshore structures - Technical delivery conditions
ABS RULES    Material and Welding 2015 Part 2
ABS RULES    Building and Classing Mobile Offshore Drilling units 2015 Part 3
DNV-OS-B101

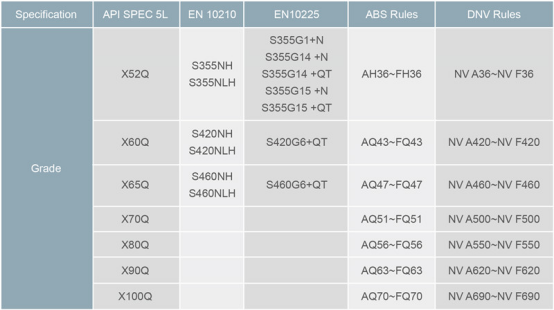

The Grade of Offshore Structural Pipe

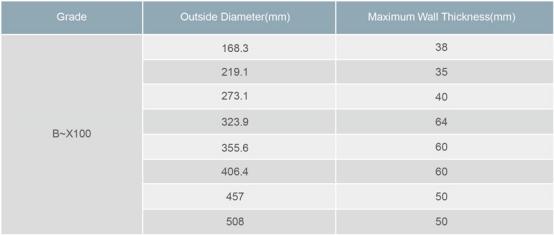

Size range

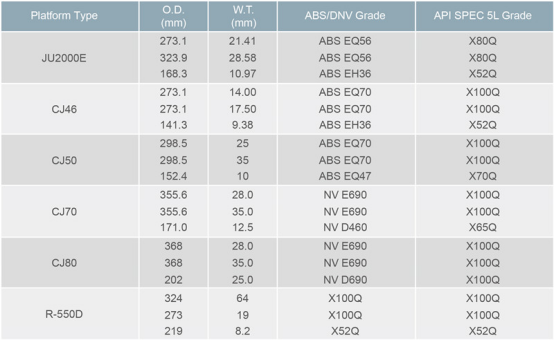

Platform Type and Corresponding Pipe Sizes and Grades

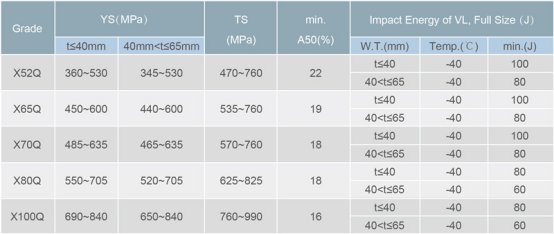

Mechanical Properties

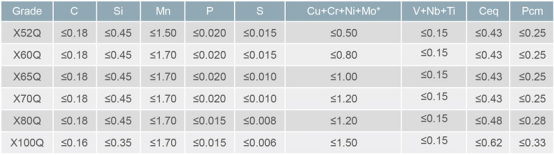

Chemical Composition (%, API Spec 5L)

 other technical requirement as per API SPEC 5L and Customer’s requirement.

Customer Weldability

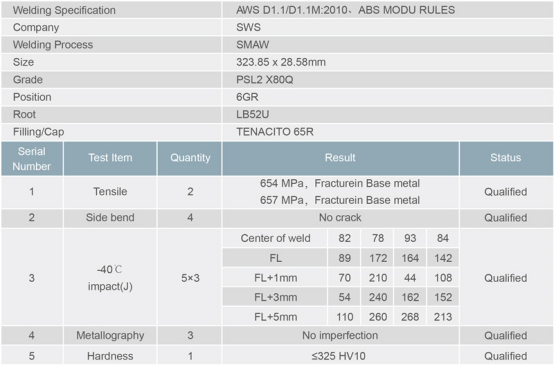

X80Q Weldability test

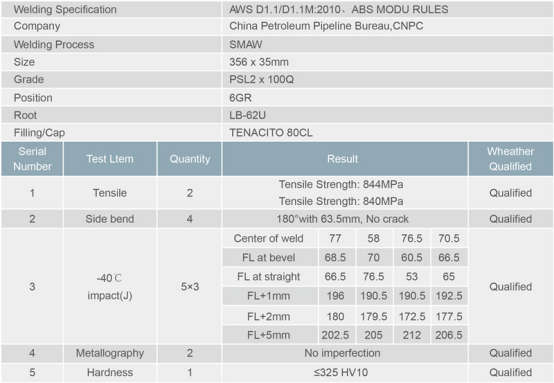

X100Q Weldability
